Top / 推荐产品(英文产品) / Ultrasonic Pull Bow Making Machine(NK-SLH2010)

Picture of Ultrasonic Pull Bow Making Machine(NK-SLH2010)

Ultrasonic Pull Bow Making Machine(NK-SLH2010)


Ultrasonic pull bow making machine also can be called pull bow making machine, ultrasonic butterfly pull bow making machine, ultrasonic pull flower making machine, ultrasonic gift ribbon making machine, and ultrasonic gift bow making machine. Ultrasonic pull bow making machine use ultrasonic working principle, achieve automatic processing, easy to operate, economic and high efficiency, artistic final products.

Overview:

Ultrasonic pull bow making machine also can be called pull bow making machine, ultrasonic butterfly pull bow making machine, ultrasonic pull flower making machine, ultrasonic gift ribbon making machine, and ultrasonic gift bow making machine. Ultrasonic pull bow making machine use ultrasonic working principle, achieve automatic processing, easy to operate, economic and high efficiency, artistic final products.

Technical Parameter:

Name:Ultrasonic pull bow making machine

Model: NK-SLH2010

Voltage: 220V,50/60Hz

Frequency: 20K

Power: 3KW

Width of roller: 20CM(standard,working width 19.2CM)

Capacity: 100,000~150,000 pcs/day

Size: 1910(L) x 670(W) x 1250(H) MM

Features:

1. Automaticity: Feeding, welding and cutting process automatic, 1 man can operate several machines.

2. Steady ultrasonic system: Japan import transducer, Taiwan import steel mould, ultrasonic generator assembly by import electric component, steady performance, less fault, fit long time work condition.

3. High efficiency, easy to adjust product size:

A. Working width can make depend on client’s requirement.

B. Material fixed position accurate by stationary fixture; stationary fixture width can make depend on client’s requirement.

C. Can produce several ribbon in 1 time, depend on ribbon width.

D. Ribbon length pattern size and embossing design can make as client’s requirement

E. Ribbon ends can cut in different shape, like swallow tail ETC

F.Ultrasonic embossing, pattern and separation distance can make as client’s requirement, artistic and no burning.

G. High efficiency, 100,000~ 150,000 pcs/day, depend on ribbon size.

4. Operate panel easy to read, easy learning how to operate without any experience, PLC control, accurate cutting length.

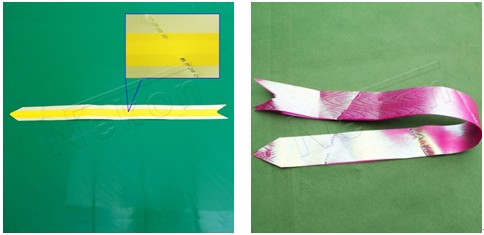

Final products:

Applicable Industry: This machine can apply to Gift and gift packing, craft and craft packing, wedding appliance, food packing appliance, household decorate etc





P.S.: How to use and applications
